# Activating a Move5000 terminal

{% stepper %}
{% step %}

## Connect the terminal to WiFi

Power the device on and allow it to boot to the FULLSTEAM screen. Once on this screen, tap 0-0-0-1.

![](https://574186891-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FBa9JfhYBfqX7DMj8oNgV%2Fuploads%2FuzguEDudMbSLmsXeQY4G%2Fmove.jpeg?alt=media\&token=768bdfb4-76ae-4300-80c1-8743b0365ad3)
{% endstep %}

{% step %}

## Select WiFi Parameters

On the next screen, select **WIFI Parameters** using the touch screen feature.

![](https://574186891-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FBa9JfhYBfqX7DMj8oNgV%2Fuploads%2FfyXqw2evOi5kZYGJhFKB%2Fwifi%20parameter.jpeg?alt=media\&token=a6f6d77c-c577-4a98-8d78-480c2e9b0528)
{% endstep %}

{% step %}

## Scan for and select your network

On the next menu, select **Scan Network**. Once the list of Networks populates, select the network you are trying to connect to.

![](https://574186891-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FBa9JfhYBfqX7DMj8oNgV%2Fuploads%2F8Bu2BC08r9pkoYNbsqbb%2Fscan.jpeg?alt=media\&token=47987f45-26e1-423f-b1cd-2428134fb0b8)
{% endstep %}

{% step %}

## Enter your WiFi password

After selecting your network, enter your WiFi password using the touch screen keyboard. The password is case sensitive and must include any symbols.

If the password is accepted, the device will show "New Profile OK" and will bring you back to the main screen, where the wireless connection in the top left should turn green.

![](https://574186891-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FBa9JfhYBfqX7DMj8oNgV%2Fuploads%2FmTDjyYYdJiTz5G2w4B6p%2Fpass.jpeg?alt=media\&token=b0720f2e-2ecf-41c2-a4ab-8bae48dd885d)

An activation code should populate on the screen. If the terminal does not give you an activation code, press and hold the # and Yellow keys. The device will reboot. If plugged in, it will reboot; if unplugged, the device will power down. Power the device back on by holding the green key.
{% endstep %}
{% endstepper %}

## Activating the Terminal through MerchantTrack

{% stepper %}
{% step %}

## Log in to MerchantTrack

Log into MerchantTrack using the single sign on by logging into your Rosy Salon Software Account (`manage>advanced settings>credit card processing>merchanttrack`).

You **MUST** have an email address in your Employee Profile in order for this to work (`manage>basic settings>employees`).
{% endstep %}

{% step %}

## Activate the terminal

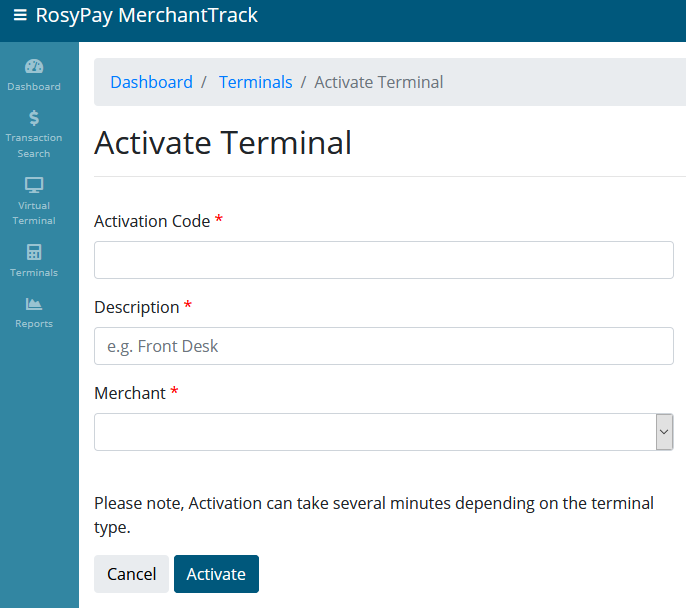

Click **Terminals** > **Activate Terminal**.
{% endstep %}

{% step %}

## Enter terminal details

Use the dropdown to select a merchant. This should already be pre-configured for you, but if you do not see a merchant, contact RosyPay for assistance.

The terminal manufacturer for Move5000 should be **Ingenico**. Enter the Activation Code as displayed on the terminal, followed by a brief description to help identify your terminal. This will be the Name of the terminal displayed in Rosy Salon Software.

![MerchantTrack Activate Terminal](https://content.gitbook.com/content/Ba9JfhYBfqX7DMj8oNgV/blobs/GQ63fF2icbyxivCQJlzJ/MerchantTrack%20Activate%20Terminal.jpeg)
{% endstep %}

{% step %}

## Confirm the terminal in Rosy Salon Software

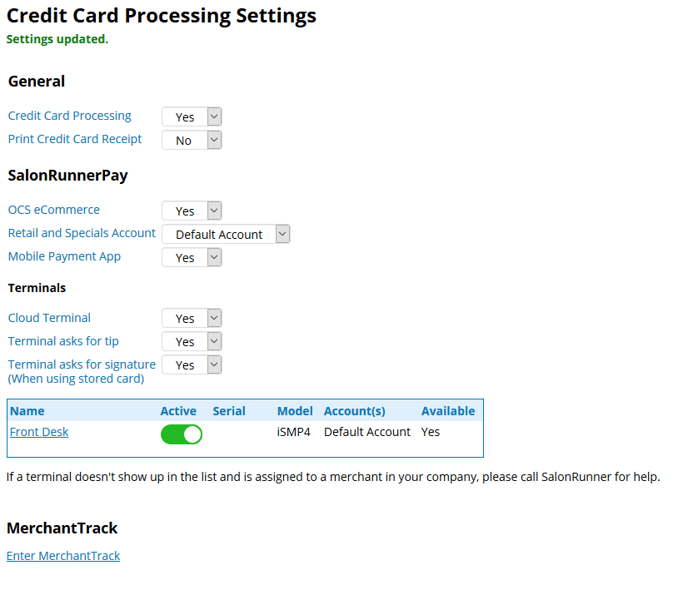

Once you have activated your terminal, go back to Rosy Salon Software and refresh the Credit Card Processing page, or go to `manage>advanced settings>credit card processing`. You will now see your activated cloud terminal and are ready to start processing.

![Credit card processing settings](https://content.gitbook.com/content/Ba9JfhYBfqX7DMj8oNgV/blobs/eFSwjVrNFePgNECocgdc/Credit%20card%20processing%20settings.jpeg)
{% endstep %}
{% endstepper %}
