Activating a PAX terminal

To connect a PAX device, it will need to be connected to your network and activated in MerchantTrack.

PAX A920 Pro-

To connect to WiFi:

  1. Turn on the terminal

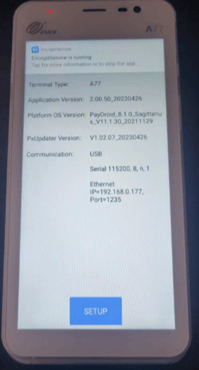

  2. There will be multiple screens that popup during startup – none of these screens require interaction, do not press any buttons until the ‘Welcome’ screen.

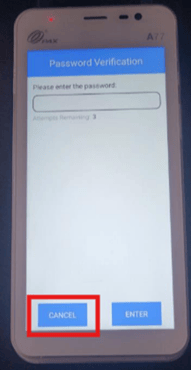

    If you accidentally hit ‘Setup’ in the screenshot above, please hit the ‘Cancel
    button

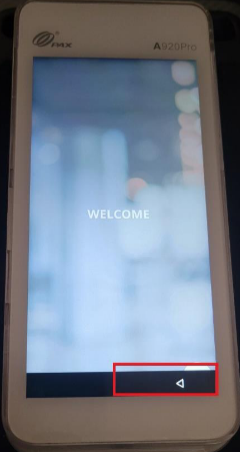

3. Once you are on the ‘Welcome’ screen, swipe up from the bottom and double tap the arrow button:

4. After double tapping the arrow, there should be a screen to input a password. The password will be: pax9876@@


5. Go to the home screen and open the Settings app
A password prompt may appear, it will be the same password as above


6. Select ‘Networks’ and connect to the Wi-Fi/network you would like.


To connect to Ethernet:

1. From "Welcome" screen: Touch the corners of the device screen in the following order. When a touch is recognized the device will beep.

2. Enter the password "pax12345". Press the green check mark on the keyboard. Press Enter.

3. Select "Host/ECR Communication" from the Setup menu.

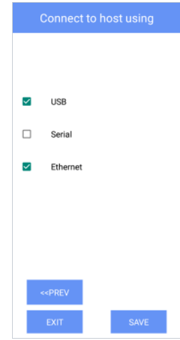

4. Check/uncheck the interfaces you want to connect with. Press "SAVE".

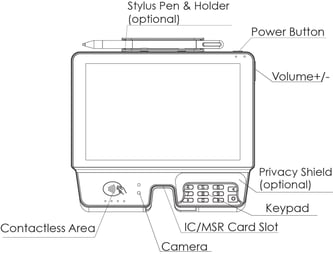

PAX Aries 8-

To connect to Ethernet:

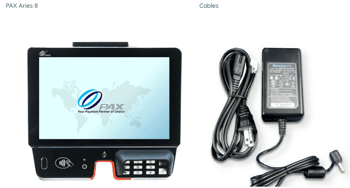

Aries8 | PAX TechnologyPower Supply, Pax S80 - Power Cord Required

ARIES8 QUICK SETUP GUIDE | PAX Technology

  1. Turn on the terminal.

  2. There will be multiple screens that popup during startup – none of these screens require interaction, do not press any buttons until the ‘Welcome’ screen

    If you accidentally hit ‘Setup’ in the screenshot above, please hit the ‘Cancel button’

  3. Please wait until you are at the Welcome screen to continue the steps. This is what the screen will look like:

    A screen shot of a computer  Description automatically generated

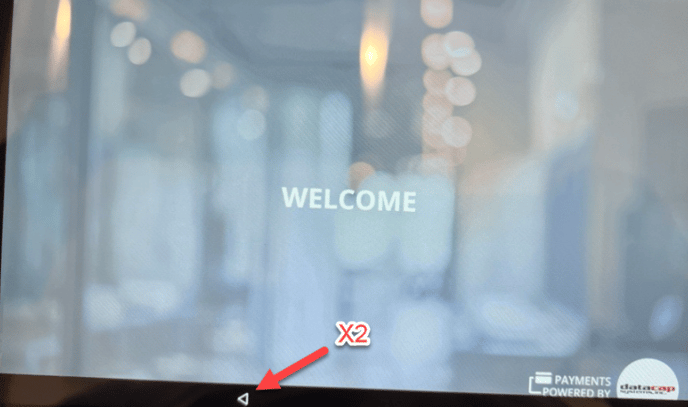

  4. Once you are on the ‘Welcome’ screen, swipe up from the bottom of the screen and double tap the arrow button

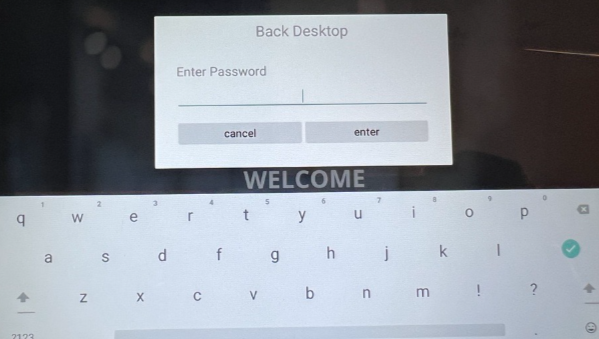

  5. After double tapping the arrow, there should be a screen to input a password. The password will be: pax9876@@

    A computer screen with a login screen  Description automatically generated
  6. A password prompt may appear, it will be the same password as above pax9876@@

    Next, go to the home screen and open the settings app.

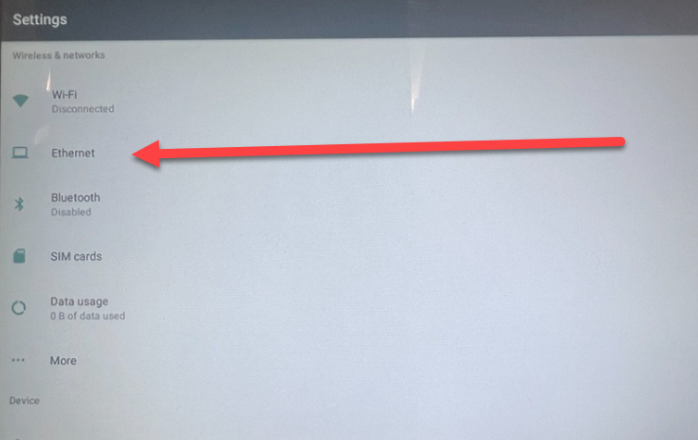

  7. From there, go to “Ethernet.”

    A red pencil on a white background  Description automatically generated

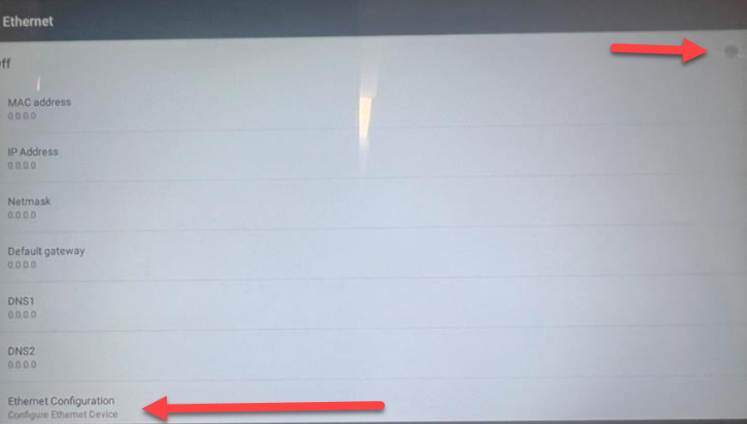

  8. On the Next screen you will need to Enable Ethernet in the top right of the screen followed by selecting “ethernet Configuration” to enable DHCP connection

    A screen shot of a computer  Description automatically generated

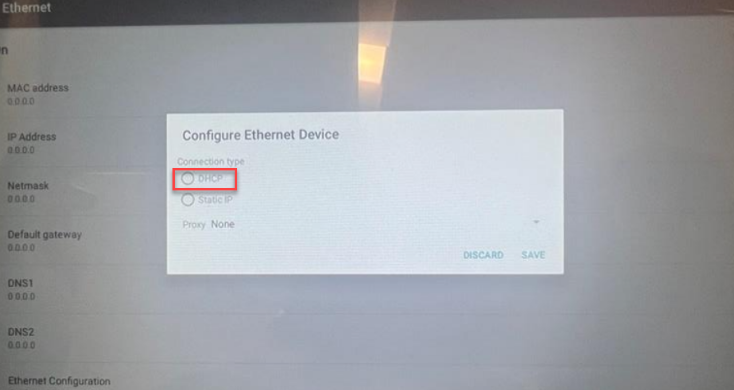

  9. Ensure to select DHCP and “SAVE”
    A screen shot of a computer  Description automatically generated
  10. The device should then return Mac address, IP Address etc.

To activate in MerchantTrack:

1. Navigate in Rosy to Manage > Advanced Settings > Credit Card Processing > Enter MerchantTrack

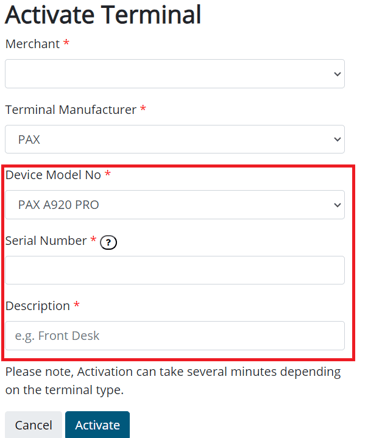

2. On your MerchantTrack toolbar, select Terminals > Activate terminal


3. Make sure Terminal Manufacturer is set to: PAX


4. Select the appropriate Model type from the "Device Model No" drop down

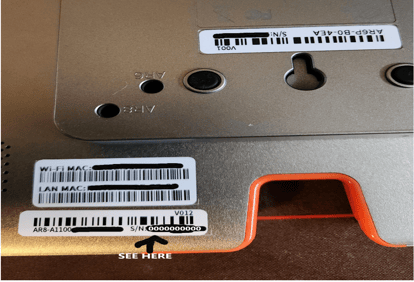

5. Enter the Serial Number that can be found on the back of your device

6. Enter a description that will be used as the name of your terminal at checkout

7. Click the blue Activate button!
